SDS系列干燥料斗由隔熱不銹鋼制成,堅固的內壁上不粘附物料堆積點。該款增值的標準設備包含重型滑閥、簡便的吊環和料斗蓋。SDS料斗不使用墊圈,使用精密的激光切割門。
? 獨特的大風量設計
? 不銹鋼構造
? 整體焊接框架
? 2”(5cm)厚度的玻璃纖維隔熱層,適用于隔熱型號料斗
? 帶長觀察窗的鉸鏈?zhǔn)綑z修門
? 訂購時需指定進料管/出料管尺寸
? 滑閥
? 卸料口
? 氣動卸料滑閥
? 將SRC30/60真空吸料器安裝至SD12-30的法蘭

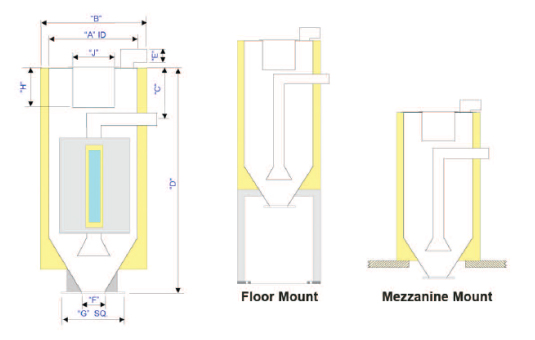

型號 | 容積,cu.Ft./liter | 重量,lbs./kg | A in. | B in. | C in. | D in. | E in. | F in. | G in. | H in. | J in. |
SDS12 | 12/340 | 420/191 | 24 | 28 | 11 | 68 | 3 | 3 | 10 | 9 | 10.125 |
SDS17 | 17/481 | 595/270 | 24 | 28 | 11 | 88 | 3 | 3 | 10 | 9 | 10.125 |
SDS23 | 23/651 | 805/365 | 30 | 34 | 11 | 81 | 3 | 3 | 10 | 9 | 10.125 |
SDS30 | 30/850 | 1,050/476 | 30 | 34 | 11 | 99 | 3 | 3 | 10 | 9 | 10.125 |
SDS45 | 45/1,274 | 1,575/714 | 40 | 44 | 15 | 100 | 3 | 5 | 16.25 | 12 | 17.125 |
SDS60 | 60/1,699 | 2,100/953 | 40 | 44 | 35 | 120 | 5 | 5 | 16.25 | 12 | 17.125 |
SDS75 | 75/2,124 | 2,625/1,191 | 40 | 44 | 56 | 141 | 5 | 5 | 16.25 | 12 | 17.125 |
SDS90 | 90/2,549 | 3,150/1,429 | 50 | 54 | 23 | 126 | 8 | 5 | 16.25 | 12 | 17.125 |
SDS135 | 135/3,823 | 4,725/2,143 | 50 | 54 | 52 | 163 | 8 | 5 | 16.25 | 12 | 17.125 |
SDS180 | 180/5,097 | 6,300/2,858 | 64 | 68 | 63 | 156 | 8 | 5 | 16.25 | 12 | 17.125 |
SDS240 | 240/6,796 | 8,400/3,810 | 64 | 68 | 92 | 185 | 10 | 5 | 16.25 | 12 | 17.125 |
SDS300 | 300/8,495 | 10,500/4,763 | 74 | 78 | 75 | 186 | 10 | 5 | 16.25 | 12 | 17.125 |
SDS425 | 425/12,035 | 14,875/6,747 | 74 | 78 | 114 | 225 | 10 | 5 | 16.25 | 12 | 17.125 |
